Description
TAKSTAR MX1 Set Live Broadcast Sound Card Set

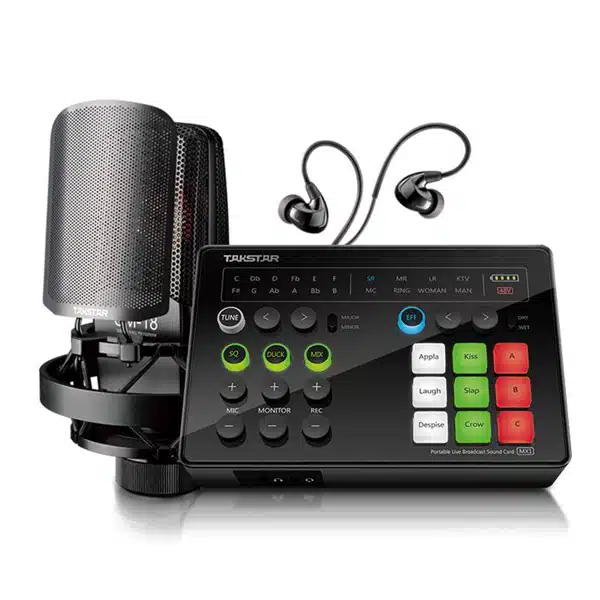

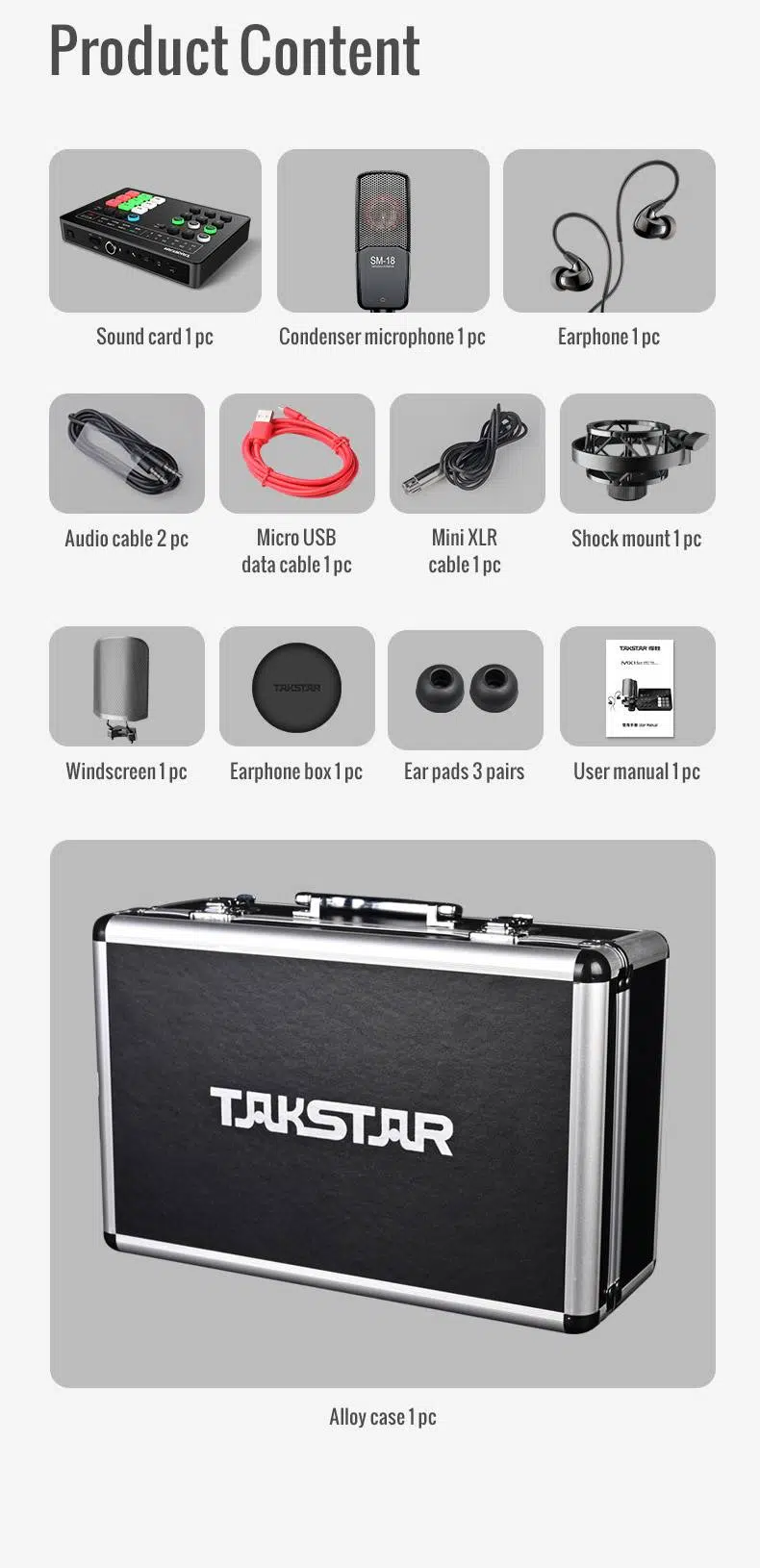

- MX1 Set is the live broadcast/Karaoke set which consists of MX1 sound card, SM-18 condenser microphone, TS-2260 earphone and accessories.
- The sound card features Li-ion battery, 9 sound effects, 9 camboy/camgirl sound effects, compatible with cell phone/iPad/PC, compact design and easy operation.
- The microphone features cartridge of φ34mm large gold plated diaphragm, high sensitivity, wide frequency response, clear sound.
- The earphone is tailored for monitoring and features Ø9.2mm high resolution driver unit to reproduce rich sound details.
- The whole set is designed with high quality alloy case for convenient outdoor application.
Specification:

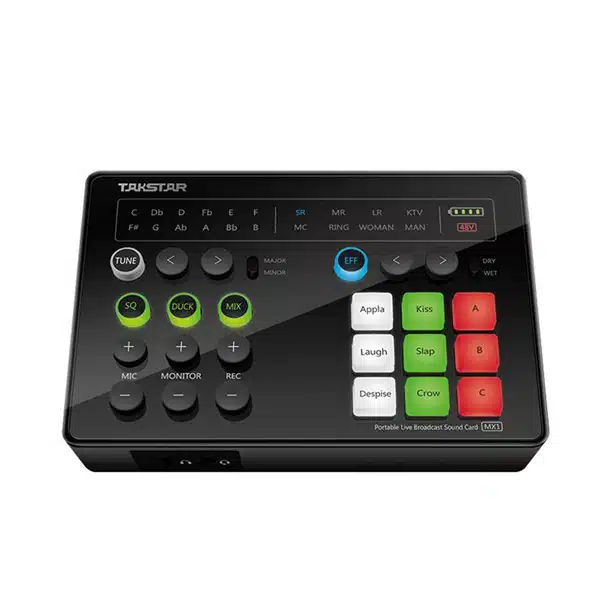

Sound card specification
- Data Transmission: USB2.0
- Sample Ratio: 48KHz/16bit
- Frequency Response: 20Hz-20KHz
- THD: THD<0.5% 1KHz
- Earphone Output Power: 125mW/32Ω
- Earphone S/N Ratio: 90dB(A-Weighted)
- Main Chip: DSP
- Reverb: Reverb
- Autotune: 24 Autotunes
- EQ: EQ
- Type: Li-ion battery
- Battery Capacity: 2700mAh
- Charging: USB 5V 1.5A
- Operation Time: more than 8h(48V off)more than 6h(48V on)
- Audio Connector: cell phone connector(3.5mm), accompaniment connect(3.5mm), mic connector1(Mini XLR), mic connector2(3.5mm), earphone connector(3.5mm), earphone mic connector(3.5mm),
- Power Connector: Micro USB
- Dimension: 142*98*22mm(L*W*H);
- Net Weight: approximate 300g

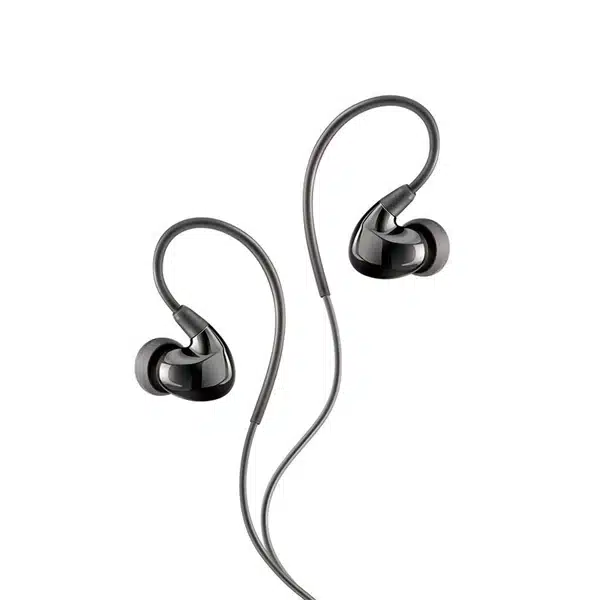

Earphone Specification
- Type: dynamic stereo earphone
- Unit Diameter: 9.2mm
- Unit Impedance: 18Ω±15%
- Frequency Response: 20Hz-20kHz
- Sensitivity: 95±3dB SPL (94dB SPL=1Pa) at 1KHz with input=0.126V(1mW)
- Peak Power: 5mW
- Rated Power: 3mW
- Cable: dia 2.3mmX2m
- Connector: 3.5mm three conductor gold plated connector
- Net Weight: approximate 13g

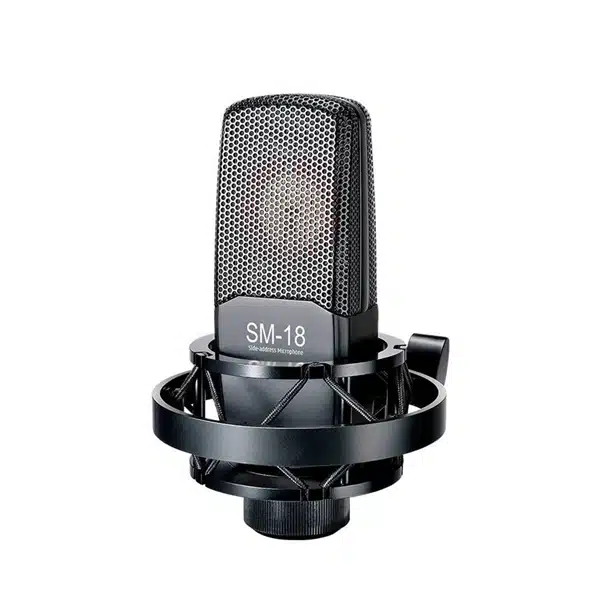

Microphone Specification
- Cartridge: cartridge of 34mm large gold plated diaphragm
- Polar Pattern: unidirectional
- Frequency Response: 20Hz-20KHz
- Sensitivity: -30dB±3dBV(0dB=1V/Pa at 1KHz)
- Equivalent Noise Level: ≤20dBA(IEC 581-5)
- Peak SPL: 135dB(THD≤1% at 1KHz)
- Output Impedance: 110Ω±30%(at 1kHz)
- Operation Voltage: 48V phantom power
- Dimension: 157mmx55x38mm
- Net Weight: approximate 372g
