Description

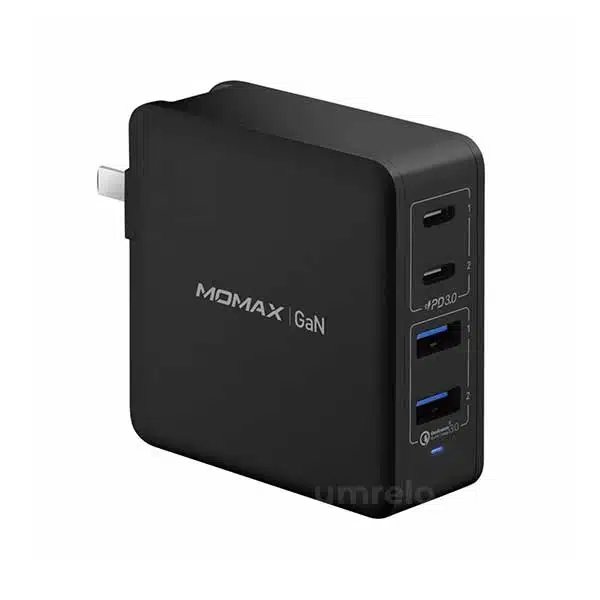

Momax ONEPLUG 4-Port 100W GaN Wall Charger UM23
- The 3rd GaN semiconductor ensures low heat generation, fast heat dissipation, high thermal conductivity, can conduct higher voltage, and provide efficient transmission for equipment
- Thanks to GaN black technology, the volume of the same power is reduced by 50%, exquisite and compact
- 90° folding plug, does not take up space and does not scratch the equipment
- 4 devices can be charged at the same time, efficient charging, say goodbye to waiting
- Single port: USB-C1/C2: 100W, USB-A1/A2: 30W
- Dual ports: USB-C1+USB-C2: 60W+30W, USB-C1/C2+USB-A1/A2: 65W+30W, USB-A1+USB-A2: 15W
- Three ports: USB-C1/C2+USB-A1+USB-A2: 60W+7.5W+7.5W, USB-C1+USB-C2+USB-A1/A2: 45W+30W+18W
- Four ports: 45W+30W+7.5W+7.5W
- Double C-port single charge is 100W, which can be fast charge for MacBook Pro and other C-port notebooks
- Two A-port single charge is 30W, 4 times faster than standard charger(for reference only), specially designed for Android and Apple 2.4A fast charge
- Support PD3.0/PPS/ QC3.0/SCP/FCP/AFC/PE+/Apple 2.4A full fast charge protocol
- Built-in PPS chip, intelligently adjust the output voltage, 3V-21V/5A dynamic micro-management, improve efficiency and avoid loss of equipment battery
- Built-in circuit protection chip provides multiple protection
Specification
- AC Input : 100-240V ~50/60Hz (2.5A max.)
- Total Output : 100W (max.)
- Size : 75mm X 75mm X 30mm
- Weight : 200g
- Single Port Output
- USB-C1/ C2 : 5V/ 3A, 9V/ 3A, 12V/ 3A, 15V/ 3A, 20V/ 5A (PD 100W max.)
- USB-A1/A2 : 4.5V/ 5A, 5V/ 4.5A, 9V/ 3A, 12V/ 2.5A, 20V/1.5A (30W Max)
- Double Port Output
- C1 + C2 : 65W + 30W (95W Max)
- C1+ A1/A2 : 65W + 30W (95W Max)
- C2+ A1/A2 : 65W + 30W (95W Max)
- A1 + A2 : 5V/ 3A (15W Max)
- Tri-port Output
- C1 + A1 + A2 : 65W + 7.5W + 7.5W (80W Max)
- C2 + A1 + A2 : 65W + 7.5W + 7.5W (80W Max)
- C1 + C2 + A1 : 45W + 30W + 18W (93W Max)
- C1 + C2 + A2 : 45W + 30W + 18W (93W Max)
- Quar-port Output
- C1 + C2 + A1 + A2 : 45W + 30W + 7.5W + 7.5W (90W Max)
